HMR Main Rotor

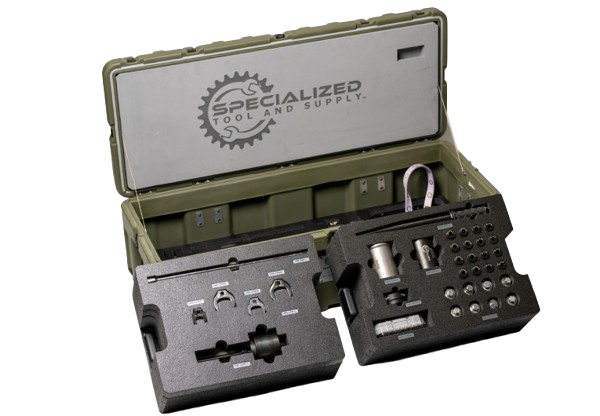

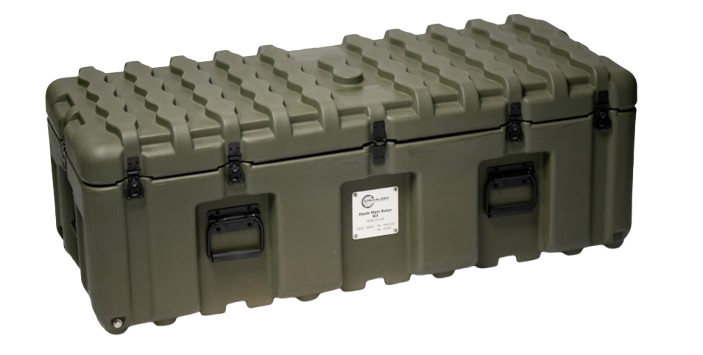

HWK-MR-102 Blackhawk Main Rotor Kit Main Rotor Head Kit (MRK-60-AA) for A/L/M contains key peculiar and hard-to-find commercial hand tools to service the main rotor head of the aircraft. Kit contents: SP-60-AA: H-60 Main Rotor Spindle Puller DSBP-60-AA: H-60 Damper Spherical Bearing Press RBAT-60-AA: H-60 Main Rotor Bushing Alignment Tool SBCAT-60-AA: H-60 Spindle & Blade Cuff Washer Alignment Tool SBP-60-AA: H-60 Spindle Bearing Press SSBP-60-AA: H-60 Swashplate Scissor Bearing Press PRTA-60-AA: H-60 Pitch Change Rod Torque Adapter FBBW-60-AA: H-60 Fixture Brace for Bifilar Weights Bolts BAT-60-AA: H-60 Main Rotor Blade Alignment Tool TIRK-60-AA: H-60 Threaded Insert Replacement Kit, Spindle & HSS MMS-60-AA: H-60 3/4 Drive, 11/16 Socket for Main Module Hardware EAA-CFS-01: 3/8″ Drive SAE 1-5/8″ Open-End Crowfoot Wrench EAA-CFS-02: 3/8″ Drive SAE 1-11/16″ Open-End Crowfoot Wrench LPP-60-AA: H-60 9/16″ Low Profile Socket for Lower Pressure Plate Bolts DE-60-AA: H-60 Main Rotor Retaining Nut 20 1/2 Drive Extension SMTA-60-AA: Shaved 3/4″ Torque Adapter

TOOLS OFFERED FOR MAIN ROTOR

  • MAIN ROTOR BUSHING ALIGNER SET
  • SPINDLE BEARING PRESS SET
  • SWASHPLATE SCISSOR BEARING PRESS
  • PITCH CHANGE ROD TORQUE ADAPTER
  • BIFILAR WEIGHT BOLT FIXTURE SET
  • BLADE ADJUSTMENT TOOL
  • THREADED INSERT KIT
  • CROWFOOT WRENCH SET
  • LOWER PRESSURE PLATE BOLT SOCKET
  • MAIN ROTOR RETAINING NUT DRIVE EXTENSION
  • SPLINE LOW PROFILE TORQUE ADAPTER
  • COLLETIVE BALANE SPRING SOCKET
  • PITCH CONTROL LINK
  • FLIGHT CONTROL BEARING PRESS
  • SPINDLE & BLADE WASHER ALIGNER SET
  • DAMPER SPHERICAL BEARING PRESS
  • MAIN ROTOR SPINDLE EXTRACTOR

Featured Items

Spindle Extractor HMR-SPEX-1 SP-60-AA Spindle Puller for UH-60 A/L/M The H60 Main Rotor Blade (SP-60-AA) Spindle Puller is used to effectively pull the spindle free from the Main Rotor Hub Assembly. As a one-person task, it is designed to control the removal of the spindle, even if stuck due to corrosion or abrasion. Every Spindle Puller is delivered in a Pelican case with custom MIL-spec foam cushioning, allowing for easy and safe transportation or storage. The Spindle Puller is comprised of a single base plate with three ACME driver assemblies threaded to hex nut holders that push against the main rotor hub. The driver assembly rods have driver feet that allow to for self-articulation and adjustment when pushing against the hub. Spindle stainless steel cross pins with retaining plungers are inserted into the main rotor blade cuff lugs allowing the tool to safely pull the spindle free from the hub as it pushes against the base plate. A safety retention nylon webbing attached to the spindle plate, using a safety retainer puck inserted into the hub spindle inspection port, catches the spindle once it is freed, preventing it from being dropped.

Spindle Extractor

Tool Maintenance to save money cost savings
H-60 S-70 HH-60 MH-60 SH-60 H60 S70 HH60 MH60 SH60 Blackhawk Tools Maintenance PMI Spindle Puller for UH-60 A/L/M The H60 Main Rotor Blade (SP-60-AA) Spindle Puller is used to effectively pull the spindle free from the Main Rotor Hub Assembly. As a one-person task, it is designed to control the removal of the spindle, even if stuck due to corrosion or abrasion. Every Spindle Puller is delivered in a Pelican case with custom MIL-spec foam cushioning, allowing for easy and safe transportation or storage. The Spindle Puller is comprised of a single base plate with three ACME driver assemblies threaded to hex nut holders that push against the main rotor hub. The driver assembly rods have driver feet that allow to for self-articulation and adjustment when pushing against the hub. Spindle stainless steel cross pins with retaining plungers are inserted into the main rotor blade cuff lugs allowing the tool to safely pull the spindle free from the hub as it pushes against the base plate. A safety retention nylon webbing attached to the spindle plate, using a safety retainer puck inserted into the hub spindle inspection port, catches the spindle once it is freed, preventing it from being dropped
H-60 S-70 HH-60 MH-60 SH-60 H60 S70 HH60 MH60 SH60 Blackhawk Tools Maintenance PMI Right Tools for Safety
Use the tool for smooth spindle extraction from the hub, taking 2-3 minutes, with advantages including no need for striking, reduced force on bearings, no requirement to remove Pro-Seal, a safety strap to prevent dropping, and handles for safe transportation..
Spindle & Blade Washer Aligner Set HMR-SBWAS-1 SBCAT-60-AA

Spindle & Blade Washer Aligner Set

Tool Maintenance to save money cost savings
H-60 S-70 HH-60 MH-60 SH-60 H60 S70 HH60 MH60 SH60 Blackhawk Tools Maintenance PMI Spindle Puller for UH-60 A/L/M The H60 Main Rotor Blade (SP-60-AA) Spindle Puller is used to effectively pull the spindle free from the Main Rotor Hub Assembly. As a one-person task, it is designed to control the removal of the spindle, even if stuck due to corrosion or abrasion. Every Spindle Puller is delivered in a Pelican case with custom MIL-spec foam cushioning, allowing for easy and safe transportation or storage. The Spindle Puller is comprised of a single base plate with three ACME driver assemblies threaded to hex nut holders that push against the main rotor hub. The driver assembly rods have driver feet that allow to for self-articulation and adjustment when pushing against the hub. Spindle stainless steel cross pins with retaining plungers are inserted into the main rotor blade cuff lugs allowing the tool to safely pull the spindle free from the hub as it pushes against the base plate. A safety retention nylon webbing attached to the spindle plate, using a safety retainer puck inserted into the hub spindle inspection port, catches the spindle once it is freed, preventing it from being dropped
It ensures precise and proper bonding between the Spindle and Blade Cuff washer by facilitating simultaneous bonding, using pressure plates and alignment inserts to prevent undesired bonding and isolate the process to the washer and cuff throughout the 24-hour curing period..
H-60 S-70 HH-60 MH-60 SH-60 H60 S70 HH60 MH60 SH60 Blackhawk Tools Maintenance PMI Main Rotor HMR-DSPS-1 DSBP-60-AA Damper Spherical Bearing Press

Damper Spherical Bearing Press

H-60 S-70 HH-60 MH-60 SH-60 H60 S70 HH60 MH60 SH60 Blackhawk Tools Maintenance PMI Spindle Puller for UH-60 A/L/M The H60 Main Rotor Blade (SP-60-AA) Spindle Puller is used to effectively pull the spindle free from the Main Rotor Hub Assembly. As a one-person task, it is designed to control the removal of the spindle, even if stuck due to corrosion or abrasion. Every Spindle Puller is delivered in a Pelican case with custom MIL-spec foam cushioning, allowing for easy and safe transportation or storage. The Spindle Puller is comprised of a single base plate with three ACME driver assemblies threaded to hex nut holders that push against the main rotor hub. The driver assembly rods have driver feet that allow to for self-articulation and adjustment when pushing against the hub. Spindle stainless steel cross pins with retaining plungers are inserted into the main rotor blade cuff lugs allowing the tool to safely pull the spindle free from the hub as it pushes against the base plate. A safety retention nylon webbing attached to the spindle plate, using a safety retainer puck inserted into the hub spindle inspection port, catches the spindle once it is freed, preventing it from being dropped
Offers time-saving benefits by being designed to extract the Spherical Damper Bearing without requiring the disconnection of the damper from the aircraft or the use of an arbor press.
H-60 S-70 HH-60 MH-60 SH-60 H60 S70 HH60 MH60 SH60 Blackhawk Tools Maintenance PMI Main Rotor Flight Control Bearing Press HFC-FCBP-1 FCBP-60-AA

Flight Control Bearing Press

Tool Maintenance to save money cost savings
H-60 S-70 HH-60 MH-60 SH-60 H60 S70 HH60 MH60 SH60 Blackhawk Tools Maintenance PMI Spindle Puller for UH-60 A/L/M The H60 Main Rotor Blade (SP-60-AA) Spindle Puller is used to effectively pull the spindle free from the Main Rotor Hub Assembly. As a one-person task, it is designed to control the removal of the spindle, even if stuck due to corrosion or abrasion. Every Spindle Puller is delivered in a Pelican case with custom MIL-spec foam cushioning, allowing for easy and safe transportation or storage. The Spindle Puller is comprised of a single base plate with three ACME driver assemblies threaded to hex nut holders that push against the main rotor hub. The driver assembly rods have driver feet that allow to for self-articulation and adjustment when pushing against the hub. Spindle stainless steel cross pins with retaining plungers are inserted into the main rotor blade cuff lugs allowing the tool to safely pull the spindle free from the hub as it pushes against the base plate. A safety retention nylon webbing attached to the spindle plate, using a safety retainer puck inserted into the hub spindle inspection port, catches the spindle once it is freed, preventing it from being dropped
Saves considerable time during aircraft rigging by pinpointing a faulty bearing that may be causing rigging issues.Additionally, it verifies the bearing drag torque option.
